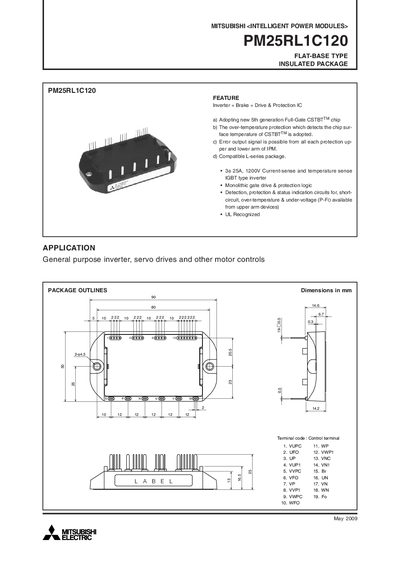

This is a PM25RL1C120 datasheet, introducing the features and characteristics of the product
This document details the specifications of the Mitsubishi PM25RL1C120 Intelligent Power Module, a flat‑base insulated IGBT/FS‑CSTBT module for general‑purpose inverter, servo drive and motor‑control applications. It includes maximum ratings, electrical characteristics, mechanical data, and performance curves for both inverter and brake sections.
The manual also offers testing precautions, recommended PCB layout guidelines, and application example circuits to ensure safe and reliable operation. All values are given for a junction temperature of 25 °C unless otherwise noted.
| Junction Temperature Range (Tj) | -20 °C to +150 °C |
|---|---|
| Supply Voltage (VD) | 13.5 V to 16.5 V |
| Weight | 135 g |
The supply voltage should be between 13.5 V and 16.5 V.
