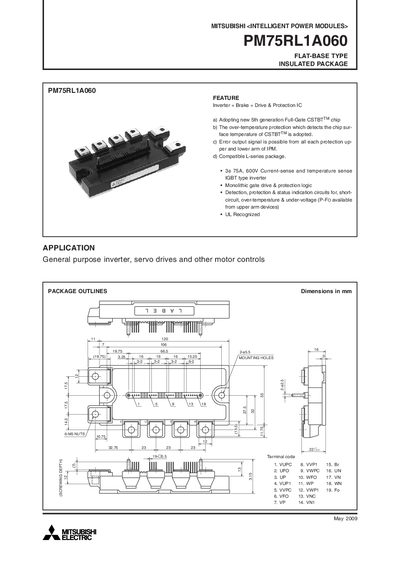

The PM75RL1A060 is a three-phase 75A, 600V intelligent power module with an integrated gate drive and protection logic, detection, protection, and status indication circuits for short-circuit, over-temperature and under-voltage, and an error output signal.
The PM75RL1A060 is an insulated, flat‑base intelligent power module that integrates an inverter, brake, drive and protection IC. It is intended for general‑purpose inverter, servo drive and other motor‑control applications.
The manual contains detailed electrical and mechanical ratings, thermal resistance data, recommended mounting conditions, testing precautions, performance curves, and transient thermal impedance characteristics to aid installation, troubleshooting and maintenance.
| Weight | 380 g |
|---|
