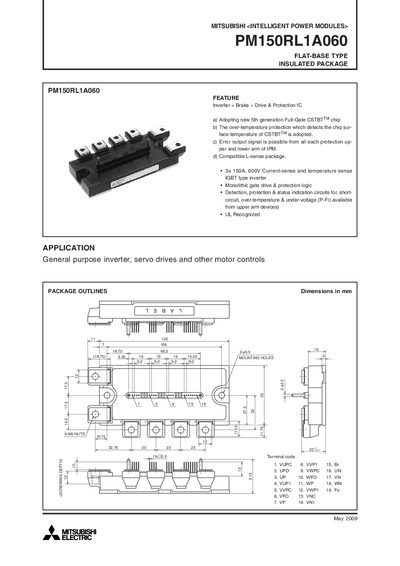

This is a PDF file about MITSUBISHI PM150RL1A060 FLAT-BASE TYPE INSULATED PACKAGE. This product is a 3φ 150A, 600V Current-sense and temperature sense IGBT type inverter, which adopts new 5th generation Full-Gate CSTBTTM chip, and has short circuit, over-temperature and under-voltage protection functions.
The PM150RL1A060 is a flat‑base, insulated Intelligent Power Module featuring an inverter, brake, drive and protection ICs. It uses a 5th‑generation Full‑Gate CSTBT™ chip and includes over‑temperature protection, error output signals, and UL recognition for general‑purpose inverter and servo drive applications.
The document lists electrical ratings such as 600 V collector‑emitter voltage, 150 A continuous collector current, and 500 W power dissipation, as well as mechanical data like mounting torque, weight, and recommended supply voltages. Performance curves, switching loss, and transient thermal impedance characteristics are also provided for design reference.
| Junction Temperature Range (Tj) | -20 °C to +150 °C |
|---|---|
| Weight | 380 g |
| Supply Voltage (VD) Recommended | 13.5 V – 16.5 V |
A supply voltage between 13.5 V and 16.5 V is recommended.
