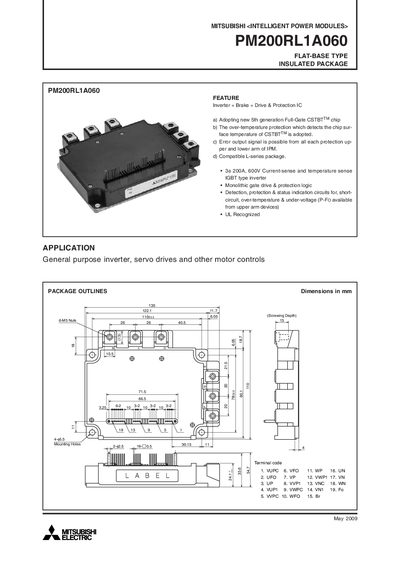

Mitsubishi Electric PM200RL1A060 Intelligent Power Module Datasheet

This document describes the features and characteristics of the MITSUBISHI PM200RL1A060 flat-base type insulated package, released in May 2009. The product adopts a new 5th generation Full-Gate CSTBTTM chip and features over-temperature protection. It allows error output signals from all protection upper and lower arms of the IPM. The module is suitable for general-purpose inverters, servo drives, and other motor control applications.

Brand: Mitsubishi
Category: Power Management
Document type: Datasheet
Language: English
Pages: 9
File format: PDF
File size: 149 KB
Published: 22 March, 2012
Updated: 28 September, 2023
MD5 checksum: 38E21703549AA51570BEA1DE15B4976D
PDF: Mitsubishi Electric PM200RL1A060 Intelligent Power Module Datasheet PDF

About this manual

This document describes the Mitsubishi Electric PM200RL1A060 Intelligent Power Module, a flat‑base, insulated package that integrates an inverter, brake, drive and protection ICs. It outlines the module’s internal functions, mechanical dimensions, and recommended mounting procedures.

The datasheet includes maximum electrical ratings, mechanical ratings, recommended operating conditions, testing precautions, performance curves, switching loss data, and transient thermal impedance characteristics for both the inverter and brake sections.

What's inside

Feature
Application
Maximum Ratings
Mechanical Ratings and Characteristics
Recommended Conditions for Use
Precautions for Testing
Performance Curves
Switching Loss Characteristics
Transient Thermal Impedance Characteristics

Specifications

Junction Temperature Range	-20 °C to +150 °C
Supply Voltage (Protected)	13.5 V – 16.5 V
Weight	800 g
