Mitsubishi Electric PM100RL1A120 User Manual

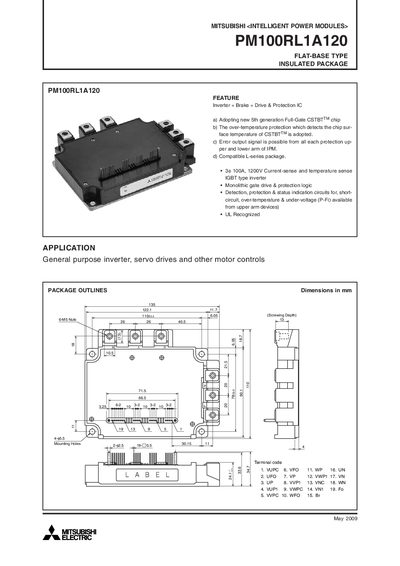

This document describes the features and characteristics of the MITSUBISHI PM100RL1A120 FLAT-BASE TYPE INSULATED PACKAGE, released in May 2009. The product adopts a new 5th generation Full-Gate CSTBTTM chip and features over-temperature protection. It also allows for error output signals from all protection upper and lower arms of the IPM. The product is suitable for general purpose inverters, servo drives, and other motor control applications.

Brand: Mitsubishi
Category: Power Management
Document type: User Manual
Language: English
Pages: 9
File format: PDF
File size: 149 KB
Published: 22 March, 2012
Updated: 28 September, 2023
MD5 checksum: 2C8406AF29755E389293D6A1BA11A6CA
PDF: Mitsubishi Electric PM100RL1A120 User Manual PDF

About this manual

The PM100RL1A120 is an insulated, flat‑base intelligent power module that integrates an inverter, brake, drive and protection ICs. It uses a 5th‑generation Full‑Gate CSTBT™ chip and includes over‑temperature, short‑circuit and under‑voltage protection.

The manual provides detailed electrical and mechanical ratings, wiring diagrams, performance curves, testing precautions, and recommended installation practices for reliable operation in general‑purpose inverter and servo drive applications.

What's inside

Feature Overview
Application
Package Outlines
Internal Functions Block Diagram
Maximum Ratings
Brake Part
Control Part
Mechanical Ratings and Characteristics
Recommended Conditions for Use
Precautions for Testing

Specifications

Maximum Continuous Collector Current (Ic)	100 A
Peak Collector Current (Ic‑peak)	200 A
Collector Dissipation (Pc)	657 W
Junction Temperature Range (Tj)	-20 °C to +150 °C
Mounting Screw Size	M5

Frequently asked questions

What is the maximum continuous collector current for the inverter part?

The inverter part is rated for a continuous collector current of 100 A.

Which protection functions are built into the module?

The module includes detection, protection and status indication for short‑circuit, over‑temperature and under‑voltage conditions.

What size are the mounting screws for the module?

The mounting screws are M5 size.

Download PDF (149 KB)
