PM25RL1A120 is a 3-phase 25A, 1200V intelligent power module. It uses the fifth-generation Full-Gate CSTBTTM chip and has chip surface temperature detection over-temperature protection. In addition, the module also supports error output signals from upper and lower arm protection and is compatible with L-series packaging.
The PM25RL1A120 is a flat‑base, insulated intelligent power module that integrates an inverter, brake, drive and protection ICs. It is intended for general‑purpose inverter, servo drive and other motor‑control applications.

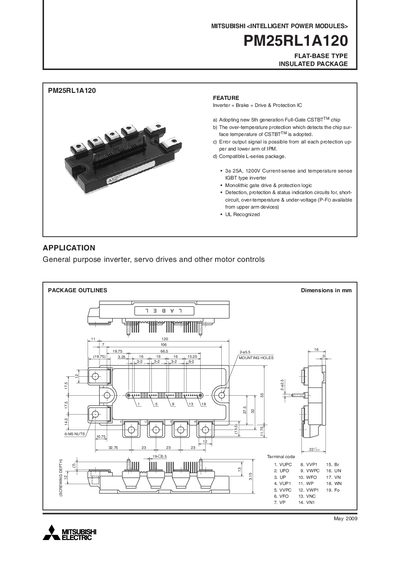

The manual contains detailed electrical characteristics, mechanical ratings, recommended operating conditions, testing procedures, performance curves and protection features to help engineers design, install and maintain the module safely and efficiently.
| Junction Temperature Range | -20 °C to +150 °C |
|---|
It includes detection, protection and status indication for short‑circuit, over‑temperature and under‑voltage conditions.
