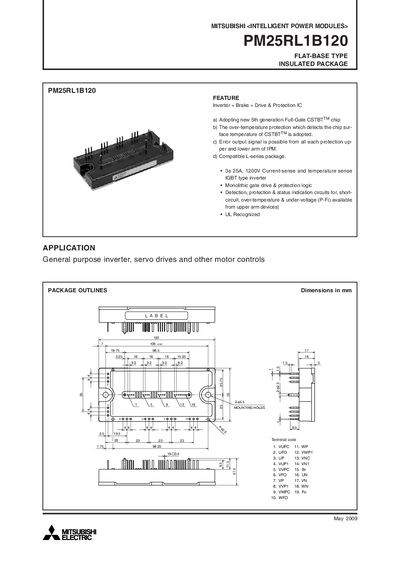

PM25RL1B120 is a three-phase 25A, 1200V IGBT module with current sensing and temperature sensing functions. It integrates gate driver and protection logic and has short-circuit, over-temperature, under-voltage detection and protection functions. UL recognized.
The PM25RL1B120 is an Intelligent Power Module that integrates an inverter, brake, drive and protection ICs. It features a 5th‑generation Full‑Gate CSTBT chip, over‑temperature protection, and error output signals for each arm. The module is intended for general‑purpose inverters, servo drives and other motor‑control applications.
The document lists electrical and mechanical ratings, recommended operating conditions, testing precautions, and performance curves. It also includes design notes for PCB layout, component selection, and safe operation of the module.
| Junction Temperature (Tj) | -20 ~ +150 °C |
|---|---|
| Supply Voltage (VCC) | 13.5 ~ 16.5 V |
| Weight | 340 g |
The module can operate from –20 °C up to +150 °C junction temperature.
