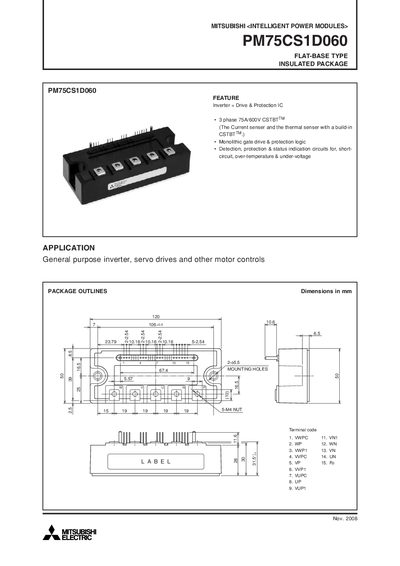

The PM75CS1D060 is a flat‑base, insulated intelligent power module that integrates a 3‑phase 75 A/600 V CSTBT inverter, drive and protection IC. It provides monolithic gate drive, protection logic and status indication for short‑circuit, over‑temperature and under‑voltage conditions, making it suitable for general‑purpose inverter, servo drive and motor control applications.
The document lists maximum ratings, electrical and mechanical specifications, recommended operating conditions, testing precautions, and detailed performance curves such as collector‑emitter saturation voltage, switching times and thermal impedance. It also includes application notes for wiring, opto‑coupler selection and noise mitigation.
| Junction Temperature Range (Tj) | -20 °C to +150 °C |
|---|---|
| Protected Supply Voltage (VD) | 13.5 V – 16.5 V |
| Mounting Screw Size | M5 |
| Weight | 400 g |
The protected supply voltage should be between 13.5 V and 16.5 V, with a typical value of 15 V.
