The PM100CS1D060 is a 3-phase 100A/600V integrated module with built-in current and thermal sensors, as well as detection, protection, and status indication circuits for short-circuit, over-temperature, and under-voltage. It is widely used in general inverters, servo drives and other motor controls.

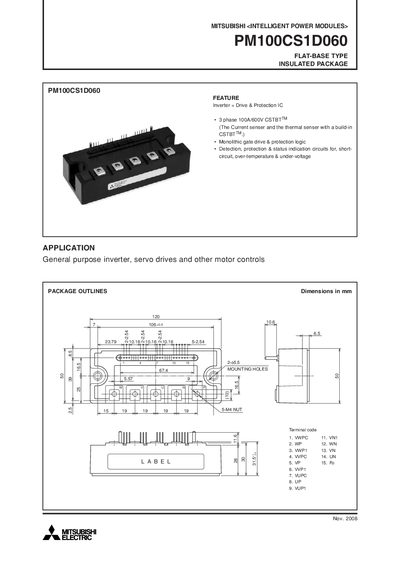

The Mitsubishi Electric PM100CS1D060 Intelligent Power Module integrates an inverter, drive, and protection IC in a flat‑base insulated package. It is designed for general‑purpose inverter, servo drive, and motor control applications, offering a 3‑phase 100 A/600 V CSTBT, monolithic gate drive, and comprehensive protection features.
The manual provides detailed functional block diagrams, maximum ratings, mechanical dimensions, testing precautions, performance curves, and recommended wiring practices to ensure reliable and safe operation of the module in industrial power systems.
| Junction Temperature (Tj) | -20 °C to +150 °C |
|---|---|
| Weight | 400 g |
The recommended supply voltage is 13.5 V to 16.5 V.
