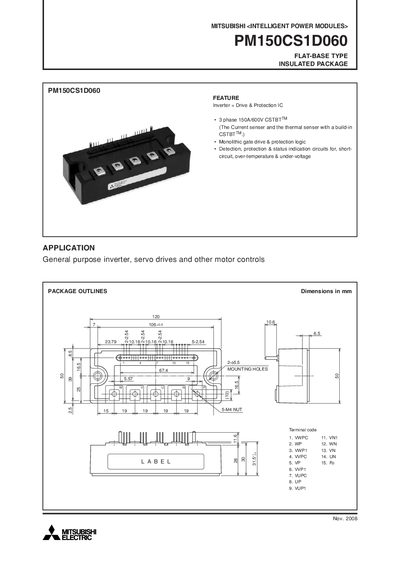

This document introduces the features and characteristics of the MITSUBISHI Intelligent Power Module PM150CS1D060, released in November 2008. The module features an inverter + drive and protection IC, 3-phase 150A/600V CSTBTTM, monolithic gate drive and protection logic, detection, protection and status indication circuits for short-circuit, over-temperature and under-voltage. It is suitable for general purpose inverters, servo drives and other motor control applications.
The PM150CS1D060 is a flat‑base, insulated Intelligent Power Module that integrates a 3‑phase 150 A/600 V CSTBT inverter, drive and protection IC. It provides monolithic gate‑drive and protection logic, as well as short‑circuit, over‑temperature and under‑voltage detection.
The document lists maximum ratings, electrical characteristics, mechanical dimensions, recommended operating conditions, testing precautions and performance curves for both the inverter and control parts of the module.
| Junction Temperature Range (Tj) | -40 °C to +150 °C |
|---|---|
| Mounting Screw Size | M5 (2.5–3.5 mm) |
Mounting screws should be M5 with a length between 2.5 mm and 3.5 mm.
