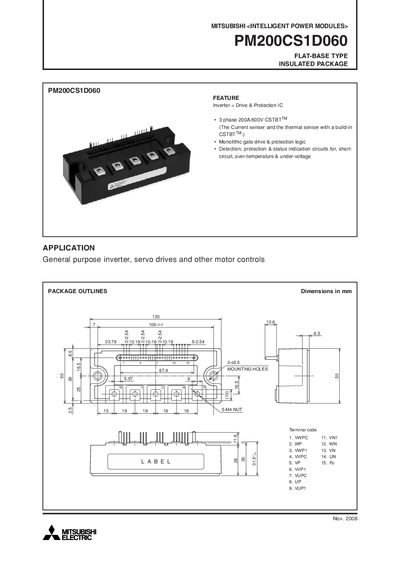

This is a PM200CS1D060 intelligent power module with a flat-base insulated package produced by Mitsubishi. It has 3 phase 200A/600V CSTBTTM, monolithic gate drive and protection logic, short circuit protection, over temperature protection and under voltage protection.
The PM200CS1D060 is a flat‑base, insulated intelligent power module that integrates a 3‑phase 200 A/600 V CSTBT, monolithic gate‑drive, and protection logic. It is intended for general‑purpose inverters, servo drives and other motor‑control applications.
The manual provides detailed electrical and mechanical ratings, recommended supply conditions, testing precautions, performance curves and thermal impedance data to help designers implement the module safely and efficiently.
| Junction Temperature Range | -20 °C to +150 °C |
|---|---|
| Mounting Screw Size | M5, 2.5‑3.5 mm |
| Weight | 400 g |
