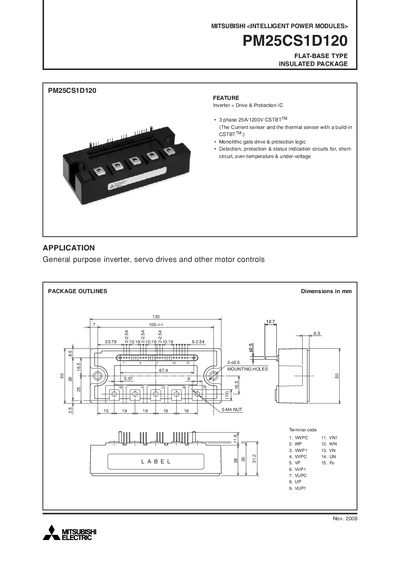

PM25CS1D120 is a 3-phase 25A/1200V intelligent power module with built-in current and thermal sensors. It features monolithic gate drive and protection logic, as well as detection, protection and status indication circuits for short-circuit, over-temperature and under-voltage.
The PM25CS1D120 is a flat‑base, insulated Intelligent Power Module that integrates a 3‑phase 25 A/1200 V CSTBT inverter, drive, and protection IC. It provides monolithic gate‑drive logic, short‑circuit, over‑temperature, and under‑voltage protection, making it suitable for general‑purpose inverter and servo‑drive applications.
The manual details internal block diagrams, maximum electrical ratings, thermal resistances, mechanical mounting data, recommended operating conditions, testing precautions, and performance curves to aid designers and service technicians in proper implementation and safe operation.
| Junction Temperature Range (Tj) | -20 °C to +150 °C |
|---|---|
| Supply Voltage (VD) | 13.5 V – 16.5 V |
| Mounting Screw Size | M5 (2.5 mm – 3.5 mm) |
| Weight | 400 g |
The recommended control supply voltage (VD) is between 13.5 V and 16.5 V.
