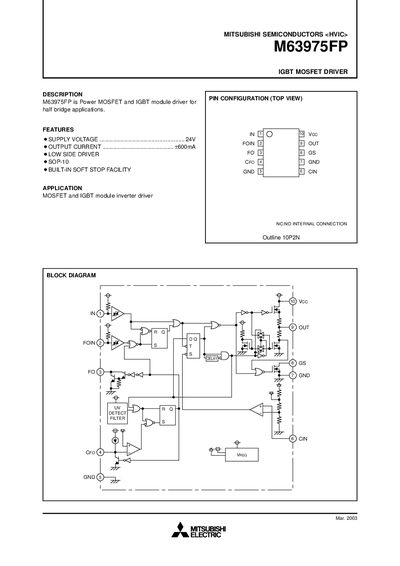

This document describes the circuit connection and application scenario of Mar. 2003 GND 5 CFO FO FOIN IN 4 + – + – CIN 6 GND 7 GS 8 OUT 9 VCC 10. The product is a MOSFET and IGBT module inverter driver with a supply voltage of 24V, output current of ±600mA, and low side driver, etc.
The M63975FP is a power MOSFET and IGBT module driver designed for half‑bridge inverter applications. It features a built‑in soft‑stop facility, low‑side driver, and a SOP‑10 package.
The document lists absolute maximum ratings, recommended operating conditions, detailed electrical characteristics, timing diagrams, and package dimensions, enabling designers to integrate the driver into power conversion circuits.
| Supply Voltage | 1 V – 24 V |
|---|---|
| Output Current | ±600 mA |
| Package Type | 10P2N‑A, Plastic 10‑pin SOP |
| Power Dissipation | 0.43 W (Ta = 25 °C, non‑board) |
| Junction Temperature | 20 °C – 125 °C |
| Operating Temperature | -20 °C – 75 °C |
The typical fixed supply voltage is 13.5 V to 16.5 V.
The driver can source or sink up to ±600 mA.
It is supplied in a 10P2N‑A plastic 10‑pin SOP package.
The device operates from –20 °C to 75 °C.
