M63954P is a high voltage half bridge driver produced by Mitsubishi Electric. It has a floating supply voltage of 600V, an output current of ±500mA, an integrated oscillator, a DIP_16 package, and an integrated regulator.
The Mitsubishi M63954P is a high‑voltage half‑bridge driver IC intended for electronic ballast, Power MOSFET and IGBT module driver applications. It features a built‑in oscillator, regulator and a 16‑pin DIP package.

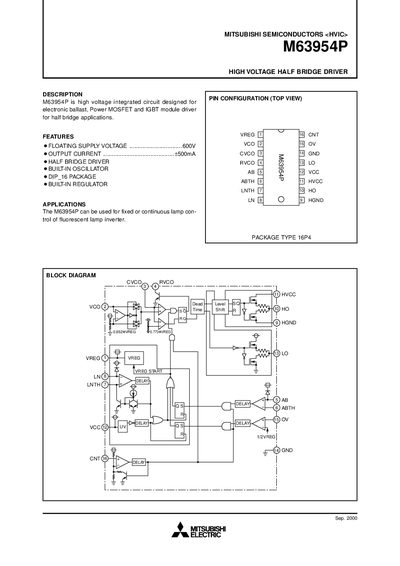

The document provides absolute maximum ratings, electrical characteristics, performance curves and mechanical dimensions, allowing designers to integrate the device into fluorescent lamp inverter circuits and other half‑bridge applications.
| Floating Supply Voltage | 600 V |
|---|---|
| Output Current (per side) | +500 mA |
| Junction Temperature (max) | 150 °C |
| Operating Temperature Range | -20 ~ +80 °C |
| Storage Temperature Range | -40 ~ +125 °C |
| Low‑Side Supply Voltage (VCC) Range | -0.5 ~ +20 V |
| Package Type | 16‑pin DIP (16P4) |
The high‑side floating supply voltage is rated up to 600 V.
Each side can source up to +500 mA of output current.
The device is specified to operate from –20 °C to +80 °C.
It is supplied in a 16‑pin DIP package (16P4).
