The PM100CS1D120 is a 3 phase 100A/1200V intelligent power module with a built-in CSTBTTM (Current senser and the thermal senser). It has monolithic gate drive and protection logic, and detection, protection and status indication circuits for short-circuit, over-temperature and under-voltage.

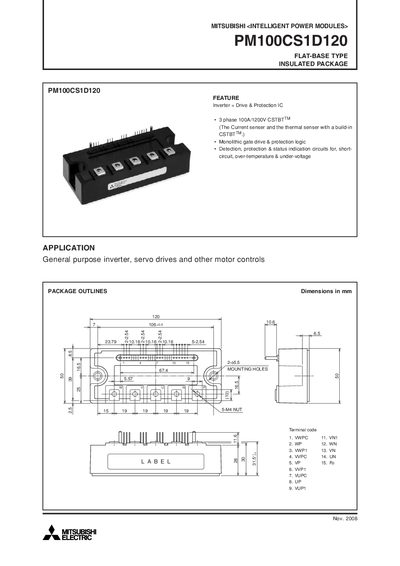

The document provides detailed electrical and mechanical specifications for the Mitsubishi PM100CS1D120 Intelligent Power Module, including maximum ratings, thermal resistances, and recommended operating conditions. It also contains block diagrams, performance curves, and testing precautions for designers and engineers.
Key sections cover the inverter and control part ratings, mechanical mounting details, thermal management guidelines, and characteristic curves for collector‑emitter voltage, switching times, and loss characteristics. The datasheet is intended for use in general‑purpose inverter, servo drive and motor control applications.
| Collector Current (Ic) | 100 A |
|---|---|
| Peak Collector Current (IcP) | 200 A |
| Collector Dissipation (Pc) | 694 W |
| Junction Temperature (Tj) | +150 °C |
| Supply Voltage (VD) | 13.5 ~ 16.5 V |
| Mounting Screw Size | M5 (2.5 ~ 3.5 mm) |
| Weight | 400 g |
The maximum continuous collector current is 100 A.
The peak collector current rating is 200 A.
The recommended supply voltage is 13.5 V to 16.5 V.
