M81719FP is a high voltage Power MOSFET and IGBT module driver for half bridge applications. It features floating supply voltage, output current, under voltage lockout, and SOP-8 package.
The M81719FP is a high‑voltage half‑bridge driver designed for MOSFET and IGBT modules used in automotive, lighting, refrigeration and motor applications. It features a floating supply, under‑voltage lockout, and is supplied in a compact SOP‑8 package.

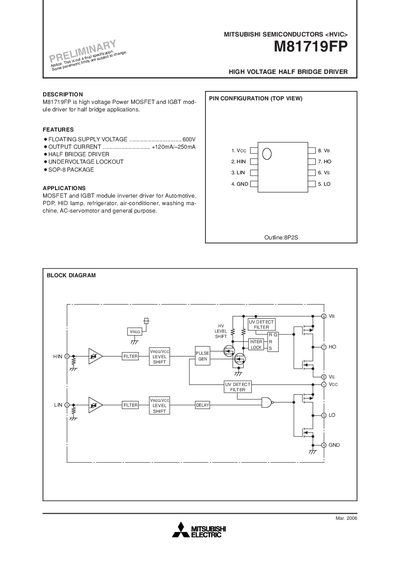

The document provides absolute maximum ratings, recommended operating conditions, electrical characteristics, functional tables, timing diagrams and mechanical dimensions to aid designers in proper integration and safe operation of the device.
| Floating Supply Voltage (VB) | 0.5 ~ 624 V |
|---|---|
| Output Current | +120 mA / –250 mA |
| Package | SOP‑8 |
| Operating Temperature | -20 ~ 100 °C |
The high‑side floating supply voltage can be up to 624 V.
It can source +120 mA and sink –250 mA.
The device is supplied in an SOP‑8 package.
The driver operates from –20 °C to 100 °C.
