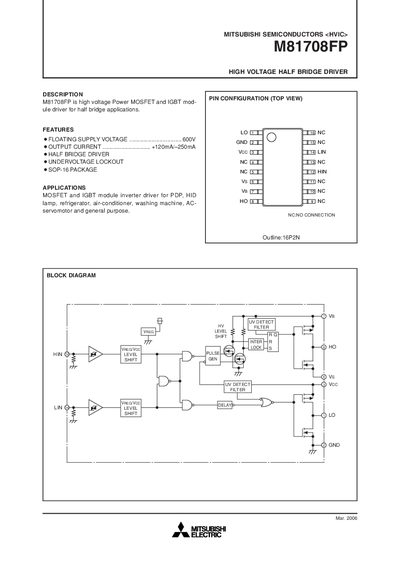

M81708FP is a high voltage Power MOSFET and IGBT module driver for half bridge applications. It is suitable for PDP, HID lamp, refrigerator, air-conditioner, washing machine, AC-servomotor, and general purpose. It features floating supply voltage, output current, half bridge driver, undervoltage lockout, and SOP-16 package.
The M81708FP is a high‑voltage half‑bridge driver designed for MOSFET and IGBT module inverter applications such as PDP, HID lamps, refrigerators, air‑conditioners, washing machines, AC‑servomotors and general‑purpose use. It features a floating supply voltage, output current capability, half‑bridge operation, under‑voltage lockout, and is supplied in a SOP‑16 package.
The document lists absolute maximum ratings, recommended operating conditions, electrical characteristics, functional tables, timing diagrams, and mechanical dimensions. Key parameters include a floating supply voltage range of 0.5 V to 624 V, output current of +120 mA/‑250 mA, and typical high‑level output voltage of 14.9 V.
| Floating Supply Voltage (VB) range | 0.5 – 624 V |
|---|---|
| Output Current | +120 mA / –250 mA |
| Junction Temperature Range | 20 – 125 °C |
The high side floating supply voltage may be as high as 624 V.
It is supplied in a 16‑pin SOP package.
