M81700FP is a high voltage half bridge driver from Mitsubishi Electric. It features an output voltage of 600V and an output current of ±2A, making it suitable for applications such as PDPs and HID lamps.
The Mitsubishi M81700FP is a high‑voltage half‑bridge driver designed for MOSFET and IGBT modules in applications such as refrigerators, air‑conditioners, washing machines, and servomotors.

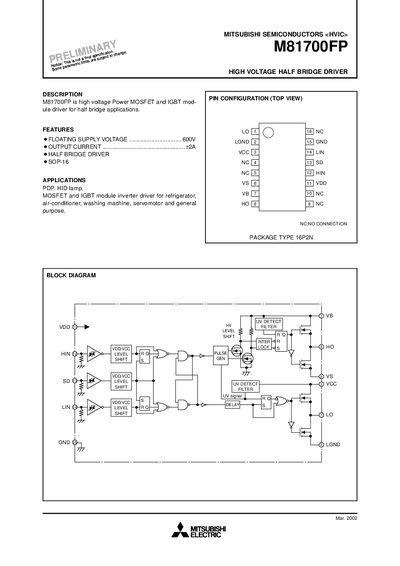

This user manual details the pin configuration, absolute maximum ratings, recommended operating conditions, electrical characteristics, functional tables, timing diagrams, and package outline for proper integration and safe operation.
| Floating Supply Voltage (VB) range | 0.5 ~ 624 V |
|---|---|
| Low Side Fixed Supply Voltage (VCC) range | 0.5 ~ 24 V |
| Package Type | 16P2N (SOP‑16) |
| Package Power Dissipation (Pd) | 0.88 W |
| Junction Temperature range | -20 ~ 125 °C |
| Operating Temperature range | -20 ~ 75 °C |
The absolute maximum rating for the high‑side floating supply voltage (VB) is 0.5 to 624 V.
The recommended VB range is VS+10 to VS+20 V.
It uses a 16‑pin SOP package identified as 16P2N.
The shutdown input voltage (SD) is specified from –0.5 V to VDD+0.5 V.
