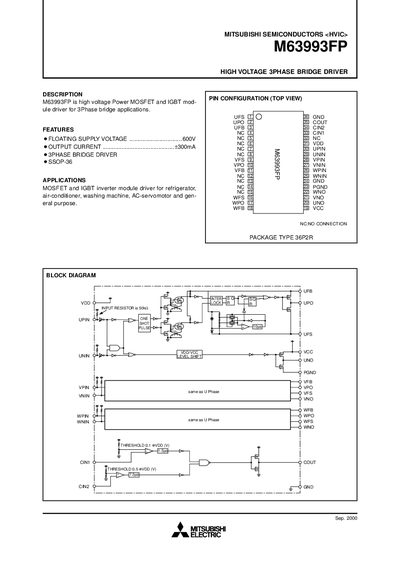

M63993FP is a high voltage Power MOSFET and IGBT module driver for 3Phase bridge applications, suitable for refrigerator, air-conditioner, washing machine, AC-servomotor, and general purpose. Features include floating supply voltage of 600V, output current of ±300mA, and 3-phase bridge driver.
The M63993FP is a high‑voltage power MOSFET and IGBT bridge driver designed for three‑phase applications such as refrigerators, air‑conditioners, washing machines, and AC servomotors. It operates with a floating high‑side supply up to 600 V and delivers up to 300 mA of gate drive current.
The datasheet details electrical characteristics, absolute maximum ratings, recommended operating conditions, pin assignments, timing diagrams, and thermal derating. It also includes package dimensions for the 36‑pin SSOP (36P2R) outline and performance curves over temperature and voltage ranges.
| Floating Supply Voltage | 600 V |
|---|---|
| Output Current | +300 mA |
| Package Type | 36P2R (36‑pin SSOP) |
| Low Side Fixed Supply Voltage (max rating) | 0.5 – 24 V |
| Logic Supply Voltage (VDD) | 0.5 – 7 V |
| Junction Temperature Range | -30 °C to 125 °C |
The device can handle a floating supply voltage up to 600 V.
The recommended low‑side fixed supply voltage is between 10 V and 20 V.
It is supplied in a 36‑pin SSOP package designated 36P2R.
The junction temperature can operate from –30 °C up to 125 °C.
