M81707FP is a high voltage power MOSFET and IGBT module driver for half bridge applications.

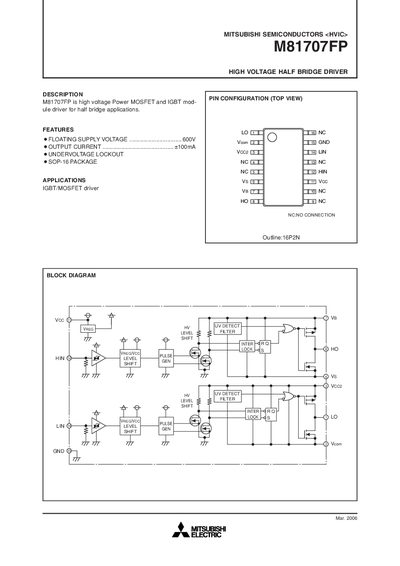

The M81707FP is a high‑voltage half‑bridge driver designed for MOSFET and IGBT applications. It features a floating supply, output current capability, and built‑in undervoltage lockout, packaged in a 16‑pin SOP (16P2N) layout. The document lists pin configurations, block diagrams, and recommended operating conditions.
Key sections include absolute maximum ratings, recommended operating ranges, detailed electrical characteristics, functional tables, timing diagrams, and package dimensions. Guidance on power‑up and power‑down sequencing is also provided to ensure reliable operation.
| High side floating supply voltage (VB) | 0.5 – 624 V |
|---|---|
| Package power dissipation (Pd) | 0.89 W |
| Junction temperature range (Tj) | 0 – 125 °C |
| Package type | 16‑pin SOP (16P2N‑A) |
| Typical high‑level input threshold (VIH) | 3.0 V (typ) |
| Typical high‑level output voltage (VOH) | 14.9 V |
The high side floating supply (VB) should be between 0.5 V and 624 V.
It uses a 16‑pin plastic SOP package (16P2N‑A).
The typical high‑level input threshold (VIH) is 3.0 V, with a range of 2.0 V to 4.0 V.
Supply Vcc first, then VCC2com, and finally Ves; on shutdown reverse the order.
