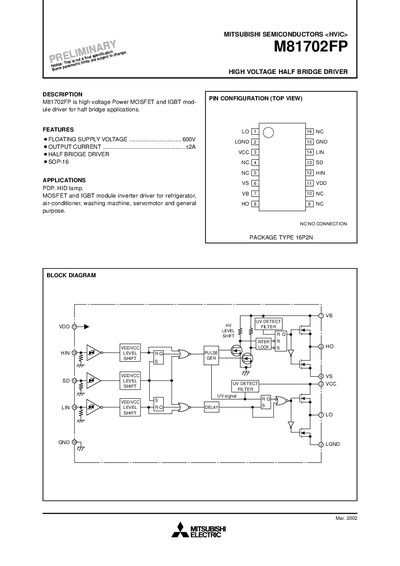

M81702FP is a high voltage Power MOSFET and IGBT module driver for half bridge applications from Mitsubishi Electric.
The M81702FP is a high‑voltage half‑bridge driver designed for MOSFET and IGBT modules in applications such as inverters for refrigerators, air‑conditioners, washing machines, and servomotors. It features a floating high‑side supply, low‑side fixed supply, and a 16‑pin SOP package.
The document provides absolute maximum ratings, recommended operating conditions, electrical characteristics, performance curves, functional tables, timing diagrams, and package dimensions to aid designers in integrating the driver into their systems.
