M63992FP is a high voltage power MOSFET and IGBT module driver for half bridge applications. It features floating supply voltage, output current, half bridge driver, and is suitable for PDP, HID lamp, refrigerator, air-conditioner, washing machine, AC-servomotor, and general purpose.
The Mitsubishi M63992FP is a high‑voltage half‑bridge driver designed for MOSFET and IGBT inverter modules used in appliances such as refrigerators, air‑conditioners and washing machines. It provides floating high‑side supply voltages up to 624 V and logic‑level control inputs.

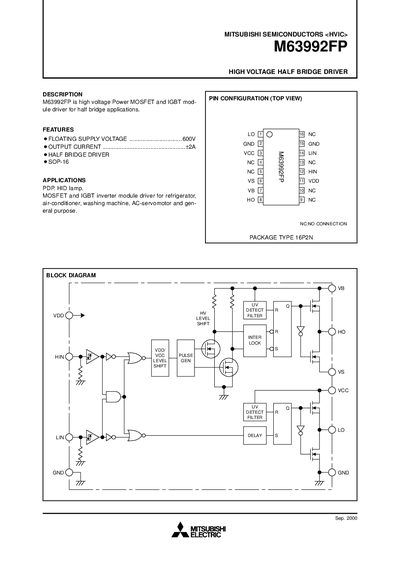

The document lists absolute maximum ratings, recommended operating conditions, detailed electrical specifications, timing diagrams, performance curves, and package dimensions for the 16‑pin SOP package.
| Floating Supply Voltage (High Side) | -0.5~624 V |
|---|---|
| Logic Supply Voltage (VDD) | 0.5~7 V |
| Package Power Dissipation | 11 W (on‑board, 25 °C) |
| Junction Temperature Range | -20 °C to 125 °C |
The device can tolerate a high‑side floating supply voltage from –0.5 V up to 624 V.
The driver operates with a logic supply voltage (VDD) between 0.5 V and 7 V.
Recommended high‑side floating supply voltage is typically 13.5 V to 20 V.
It is supplied in a 16‑pin SOP (16P2N) plastic package.
