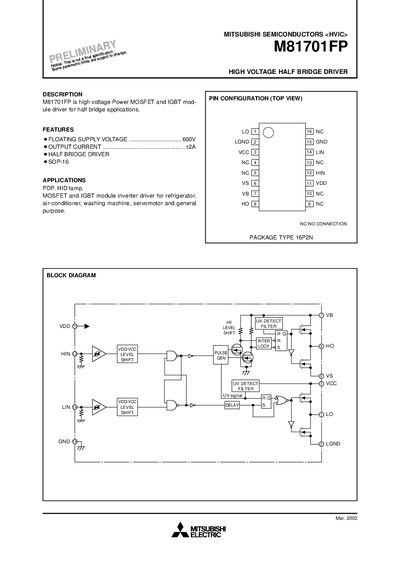

M81701FP is a high voltage Power MOSFET and IGBT module driver for half bridge applications. It features floating supply voltage, output current of ±2A, and SOP-16 package.
The M81701FP is a high‑voltage half‑bridge driver designed for MOSFET and IGBT module inverter applications such as refrigerators, air‑conditioners, washing machines, and servomotors. It features a floating high‑side supply, low‑side fixed supply, and supports both high‑side and low‑side output control.
The document includes sections on pin configuration, absolute maximum ratings, recommended operating conditions, electrical characteristics, functional tables, timing diagrams, and package outline, giving designers the data needed to integrate the driver into their circuits.
| High Side Floating Supply Voltage (VB) | 0.5 – 624 V |
|---|---|
| Logic Supply Voltage (VDD) | 0.5 – 24 V |
| Junction‑Case Thermal Resistance | 50 °C/W |
| Maximum Junction Temperature | 20 – 125 °C |
| Operating Temperature Range | -20 – 75 °C |
The high‑side floating supply voltage can be between 0.5 V and 624 V.
VDD should be between 5 V and 20 V under normal operating conditions.
The driver is supplied in an SOP‑16 package with 16 pins.
