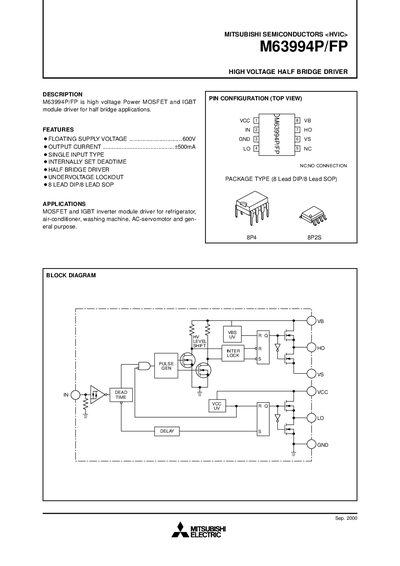

M63994P/FP is high voltage Power MOSFET and IGBT module driver for half bridge applications
The M63994P/FP is a high‑voltage half‑bridge driver designed for MOSFET and IGBT inverter modules used in appliances such as refrigerators, air‑conditioners, and washing machines. It features a floating supply voltage up to 600 V, output current of +500 mA, internal dead‑time, and under‑voltage lockout.
The manual includes sections on absolute maximum ratings, recommended operating conditions, electrical characteristics, pin configuration, performance curves, logic sequence, and package outline, providing engineers with the data needed for design and troubleshooting.
| Floating Supply Voltage | 600 V |
|---|---|
| Output Current | +500 mA |
| High Side Floating Supply Voltage (max) | 0.5~624 V |
| Low Side Fixed Supply Voltage | 0.5~24 V |
| Junction Temperature Range | -20 °C to +125 °C |
| Package Power Dissipation (P version) | 0.85 W |
The driver can operate with a floating supply voltage up to 600 V.
VCC is recommended between 13.5 V and 20 V, while the high‑side floating supply voltage (VB) is recommended between 13.5 V and 20 V.
The 8‑lead DIP package has eight pins.
Yes, the driver has an internally set dead‑time.
