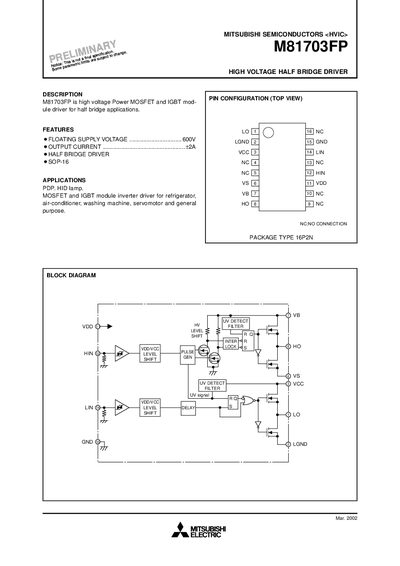

This is an English document that introduces the characteristics of the M81703FP product. M81703FP is a high voltage power MOSFET and IGBT module driver for half bridge applications. It features floating supply voltage 600V, output current ±2A, half bridge driver and SOP-16 package.
The M81703FP is a high‑voltage half‑bridge driver designed for MOSFET and IGBT modules used in applications such as refrigerators, air‑conditioners, washing machines, and servomotors. The document outlines its description, pin configuration, features, and typical applications.
Key sections include absolute maximum ratings, recommended operating conditions, electrical characteristics, functional tables, timing diagrams, and package outline, offering designers the necessary data to integrate the driver into high‑voltage power conversion circuits.
| High Side Floating Supply Voltage (VB) Range | 0.5 ~ 624 V |
|---|---|
| Low Side Fixed Supply Voltage (VCC) Range | 0.5 ~ 24 V |
| Junction‑Case Thermal Resistance (Rth(j‑c)) | 50 °C/W |
| Operating Temperature Range (Topr) | -20 ~ 75 °C |
The high‑side floating supply voltage (VB) can be up to 624 V.
The recommended VDD range is 5 V to 20 V.
Supply voltage transients should be below 50 V/µs; higher rates may cause the output to stay high.
The driver is supplied in a 16‑pin SOP package.
