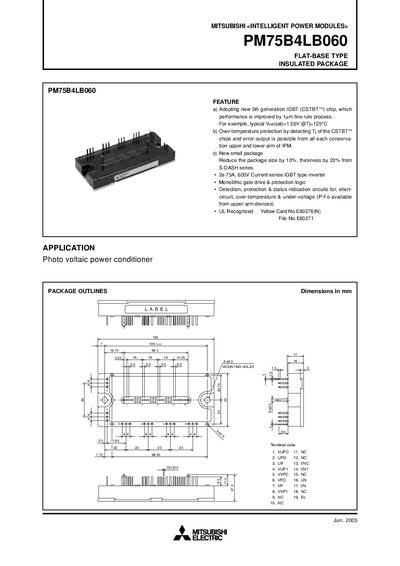

The PM75B4LB060 is a new IGBT Intelligent Power Module from Mitsubishi Electric. It uses the fifth-generation CSTBT TM chip, which provides improved performance. For example, the typical Vce(sat) is 1.55V @ Tj = 125 °C. Over-temperature protection can be achieved by detecting the Tj of the CSTBT TM chips, and error output is possible from all each conservation upper and lower arm of IPM. The PM75B4LB060 uses a new small package that is 10% smaller and 22% thinner than the S-DASH series.
This manual describes the Mitsubishi Electric PM75B4LB060 Intelligent Power Module, a flat‑base insulated IGBT package designed for photovoltaic power conditioners and other inverter applications. It includes feature highlights, mechanical dimensions, and recommended mounting procedures.
The document contains detailed electrical ratings, thermal characteristics, control‑circuit specifications, and testing precautions to ensure safe and reliable operation. Wiring diagrams, performance curves, and transient characteristics are provided for system designers and service technicians.
| Junction Temperature Range | -20 °C ~ +150 °C |
|---|---|
| Supply Voltage (VD) | 13.5 V ~ 16.5 V |
| Weight | 340 g |
The supply voltage across the P‑N terminals should be less than 400 V.
