PM50B4LB060 is a 2-phase 50A, 600V flat base insulated package intelligent power module, which adopts 5th generation IGBT chip, excellent performance, monolithic gate drive and protection logic, detection protection circuit, and has short circuit, over temperature, under voltage and other protection functions

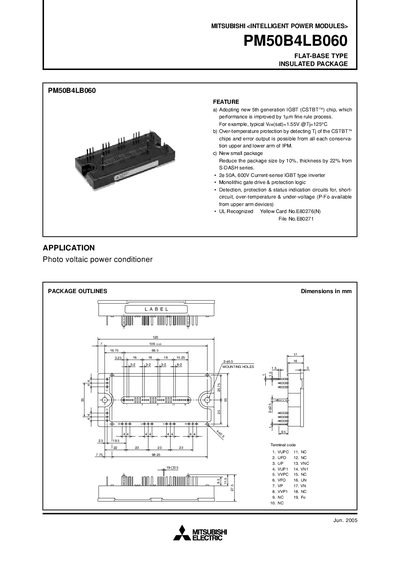

The manual introduces the Mitsubishi Electric PM50B4LB060 flat‑base insulated power module, highlighting its 5th‑generation IGBT (CSTBT™) technology, reduced package size and typical performance figures such as VCE(sat)=1.55 V at 125 °C. It lists the intended application as a photovoltaic power conditioner and provides a detailed package outline with dimensions and terminal assignments.
Technical sections describe maximum electrical ratings, thermal resistances, mechanical specifications, recommended operating conditions, testing procedures, and safety notes. Performance curves, transient thermal impedance data, and wiring diagrams are included to aid designers and service technicians in integrating the module safely and efficiently.
| Junction Temperature Range | -20 °C ~ +150 °C |
|---|---|
| Supply Voltage (Protected) | 13.5 V ~ 16.5 V |
| Isolation Voltage | 2500 V rms (1 min) |
| Mounting Torque | 2.5 – 3.5 Nm |
Use a mounting torque between 2.5 Nm and 3.5 Nm.
The isolation voltage rating is 2500 V rms for 1 minute.
The junction temperature can be from –20 °C up to +150 °C.
