PM75B4LA060 is a flat-base insulated package IGBT type inverter module produced by MITSUBISHI. It adopts the 5th generation IGBT chip and has the characteristics of high performance and low power consumption.
The PM75B4LA060 is a flat‑base, insulated intelligent power module featuring a 5th‑generation IGBT (CSTBT™) chip, over‑temperature protection, and a compact package. It is designed for photovoltaic power conditioning and includes built‑in gate drive, protection logic, and status indication circuits.

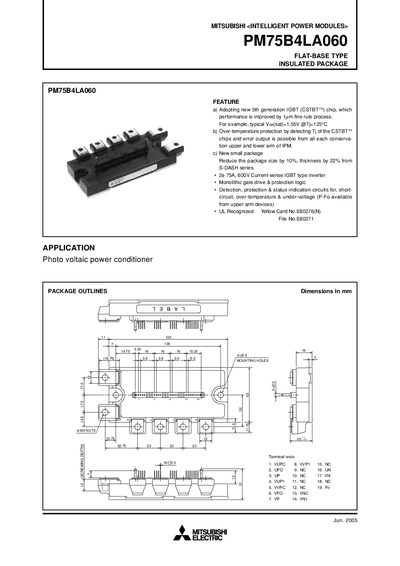

The manual contains detailed electrical characteristics, maximum ratings, mechanical dimensions, recommended operating conditions, testing precautions, and performance curves. It also provides wiring diagrams, mounting instructions, and guidelines for safe and stable operation.
| Continuous Collector Current | 75 A |
|---|---|
| Power Dissipation | 390 W |
| Junction Temperature Range | -20 °C to +150 °C |
| Control Supply Voltage | 20 V |
| Weight | 380 g |
| Mounting Torque (main terminal screw) | 2.5–3.5 N·m |
It is approximately 1.55 V.
A 20 V supply applied between VUP1‑VUPC (or VUP1‑VUPC) is recommended.
