PM50B5LA060 is a 2-phase 50A, 600V intelligent power module produced by MITSUBISHI. It adopts a new 5th generation IGBT chip with 1µm fine rule process, which improves the performance. The module adopts a new small package with a size 10% smaller and a thickness 22% smaller than the S-DASH series.

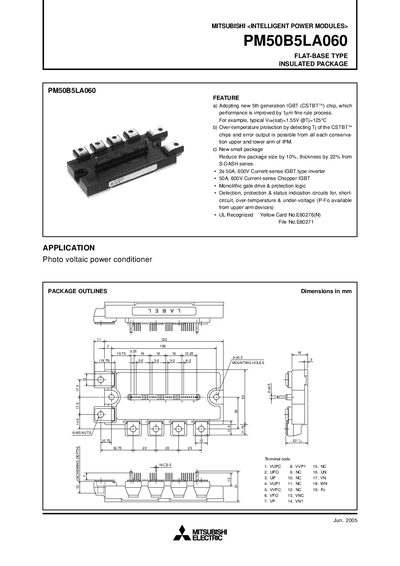

This manual provides detailed information on the Mitsubishi PM50B5LA060 Intelligent Power Module, including its features, electrical and mechanical ratings, and recommended operating conditions. It contains block diagrams, performance curves, and wiring diagrams to aid in design and installation.
Precautions for testing, recommended mounting procedures, and notes for stable and safe operation are also included, making it a comprehensive reference for engineers and technicians working with photovoltaic power conditioners and other inverter applications.
| Continuous Collector Current (Ic) | 50 A |
|---|---|
| Power Dissipation (Pc) | 131 W |
| Junction Temperature Range | -20 °C to +150 °C |
| Mounting Torque (M5 screw) | 3.0 – 3.5 Nm |
| Weight | 380 g |
| Supply Voltage (VD) | 13.5 V – 16.5 V |
The module is rated for a continuous collector current of 50 A.
Use a torque of 3.0 Nm to 3.5 Nm for the M5 terminal screws.
The device can operate from –20 °C up to +150 °C.
