PM75B5LA060 is a 600V 75A IGBT module produced by Mitsubishi Electric. It adopts the new 5th generation CSTBT IGBT chip, which improves the performance.

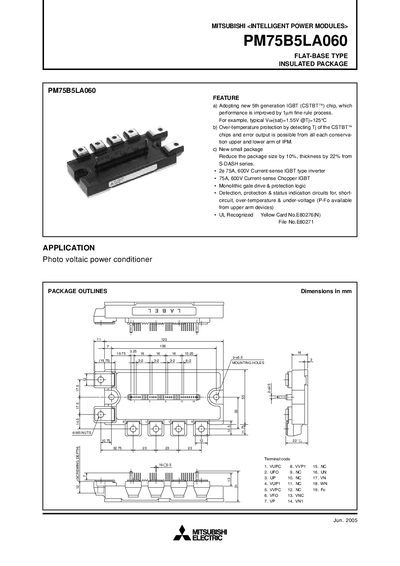

This manual describes the Mitsubishi PM75B5LA060 intelligent power module, a flat‑base insulated IGBT package for photovoltaic power conditioning. It includes features such as a 5th‑generation CSTBT™ chip, reduced package size, and built‑in over‑temperature, short‑circuit, and under‑voltage protections.
The document contains electrical and mechanical ratings, recommended mounting and wiring practices, test procedures, performance curves, and thermal impedance data to help users install, operate, and maintain the module safely and efficiently.
| Collector Current (Ic) | 75 A (typical) |
|---|---|
| Junction Temperature Range | -20 °C to +150 °C |
| Weight | 380 g |
The module is rated for a continuous collector current of 75 A, with a peak rating of 150 A.
The device can operate from –20 °C up to +150 °C junction temperature.
