PM50B5LB060 is a new IGBT module from Mitsubishi Electric. It uses 5th generation IGBT chip and has an output power of 2 phases 50A, 600V. It can be used for photovoltaic power conditioner applications.

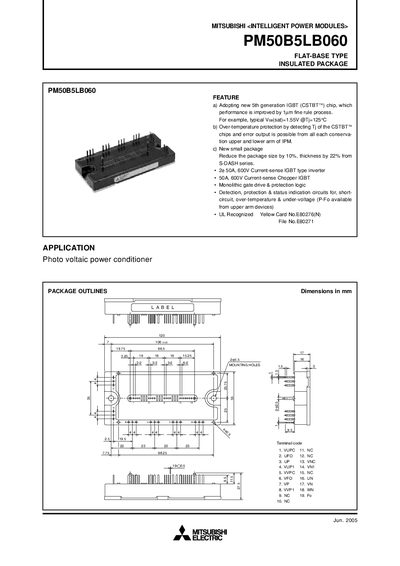

This manual provides detailed information on the Mitsubishi PM50B5LB060 Intelligent Power Module, including its features, electrical ratings, mechanical dimensions, and recommended operating conditions. It is intended for engineers and technicians who integrate the module into photovoltaic power conditioners or similar applications.
The document covers installation precautions, testing procedures, performance curves, and transient characteristics, helping users achieve safe and reliable operation of the module.
| Collector Current (Ic) | 50 A |
|---|---|
| Peak Collector Current (Icp) | 100 A |
| Power Dissipation (Pc) | 131 W |
| Junction Temperature (Tj) | -20 ~ +150 °C |
| Supply Voltage (VD) | 13.5 ~ 16.5 V |
| Weight | 340 g |
The module is rated for a continuous collector current of 50 A.
