PM75B5LB060 is a new flat-base isolated package power module using Mitsubishi Electric's fifth-generation IGBT chip. It has the advantages of small size, excellent performance, over-temperature protection, etc.

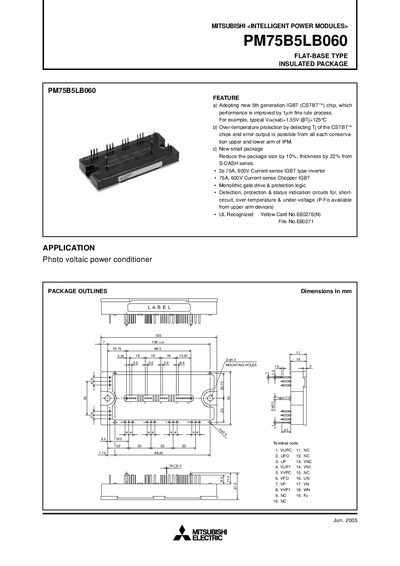

This manual describes the Mitsubishi PM75B5LB060 Intelligent Power Module, a flat‑base, insulated IGBT‑based power device for photovoltaic power conditioning. It includes features, package dimensions, electrical and mechanical ratings, and recommended operating conditions.
The document contains detailed maximum ratings, performance curves, testing precautions, and application example circuits, helping engineers integrate the module safely and efficiently into power conversion systems.
| Continuous Collector Current | 75 A |
|---|---|
| Peak Collector Current | 150 A |
| Collector Power Dissipation | 390 W |
| Junction Temperature Range | -20 °C to +150 °C |
| Supply Voltage (VD) | 13.5 V to 16.5 V |
| Weight | 340 g |
The module is rated for a continuous collector current of 75 A.
The peak collector current rating is 150 A.
The recommended supply voltage is between 13.5 V and 16.5 V.
The junction temperature can operate from –20 °C up to +150 °C.
