Mitsubishi PM50B6LA060 Intelligent Power Module User Manual

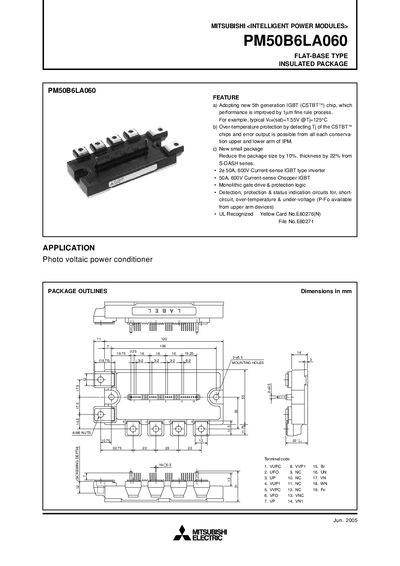

The document introduces the features of the MITSUBISHI PM50B6LA060 flat-base insulated package produced in June 2005. It adopts the new 5th generation IGBT (CSTBT) chip, whose performance is improved by a 1µm fine rule process. It has over-temperature protection by detecting the Tj of the CSTBT chips and can output error signals from all the conservation upper and lower arms of the IPM. It also has a new small package, reducing the package size by 10% and thickness by 22% compared to the S-DASH series. It is suitable for photovoltaic power conditioners.

Brand: Mitsubishi
Category: Power Management
Document type: User Manual
Language: English
Pages: 10
File format: PDF
File size: 140 KB
Published: 22 March, 2012
Updated: 28 September, 2023
MD5 checksum: 0C977A1ABF2D08805D36EECE8BD54DA1
PDF: Mitsubishi PM50B6LA060 Intelligent Power Module User Manual PDF

About this manual

The PM50B6LA060 is a flat‑base, insulated Intelligent Power Module (IPM) featuring a 5th‑generation IGBT (CSTBT™) chip. It is intended for photovoltaic power conditioners and other inverter applications, offering 50 A continuous and 100 A peak current capability at 600 V.

This manual details the module’s electrical and mechanical ratings, wiring diagrams, testing precautions, performance curves, and recommended installation conditions. It includes maximum ratings, thermal resistance data, and guidelines for safe operation and troubleshooting.

What's inside

Features
Application
Maximum Ratings
Electrical Characteristics
Mechanical Ratings
Precautions for Testing
Performance Curves
Normalized Transient
FWDi Forward Voltage Characteristics

Specifications

Continuous Collector Current (Ic)	50 A
Peak Collector Current (Ic, peak)	100 A
Power Dissipation (Pc)	131 W
Junction Temperature Range	-20 °C to +150 °C
Supply Voltage (VD)	13.5 V – 16.5 V
Weight	380 g
Mounting Torque (main terminal screw)	25 N·m typical (3.0 N·m min, 35 N·m max)

Frequently asked questions

What is the maximum continuous collector current for the PM50B6LA060?

The module is rated for a continuous collector current of 50 A at 25 °C.

What is the recommended mounting torque for the main terminal screw?

The recommended torque is 25 N·m (typical), with a range of 3.0 N·m minimum to 35 N·m maximum.

What supply voltage range should be applied to the module?

Apply a protected supply voltage between 13.5 V and 16.5 V.
