PM75B6LA060 is a power module product produced by Mitsubishi Electric. It adopts the fifth-generation IGBT chip and has the characteristics of low voltage drop, high efficiency and small size.
The PM75B6LA060 is a flat‑base, insulated Intelligent Power Module featuring a 5th‑generation CSTBT™ IGBT chip, rated for 75 A continuous and 150 A peak current at 600 V. It is intended for photovoltaic power conditioners and other high‑power inverter applications.

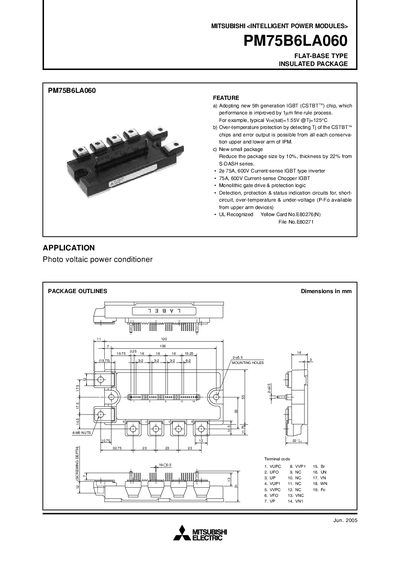

This manual includes maximum electrical ratings, thermal resistance data, mechanical dimensions, recommended operating conditions, testing precautions, and performance curves. It also provides wiring diagrams, input signal definitions, and guidance for safe and stable operation.
| Continuous Collector Current (Ic) | 75 A |
|---|---|
| Power Dissipation | 390 W |
| Junction Temperature Range | -20 °C to +150 °C |
| Weight | 380 g |
The module is rated for a continuous collector current of 75 A.
The control supply voltage (VD) is recommended at 20 V.
