PM75B6LB060 is a power module produced by Mitsubishi Electric. It adopts new 5th generation IGBT chip and has high performance and small size.
The PM75B6LB060 is a flat‑base, insulated intelligent power module that incorporates a 5th‑generation CSTBT™ IGBT chip. It offers a compact package (10 % smaller than the S‑DASH series) with integrated gate‑drive and protection logic, suitable for photovoltaic power conditioners and other inverter applications.

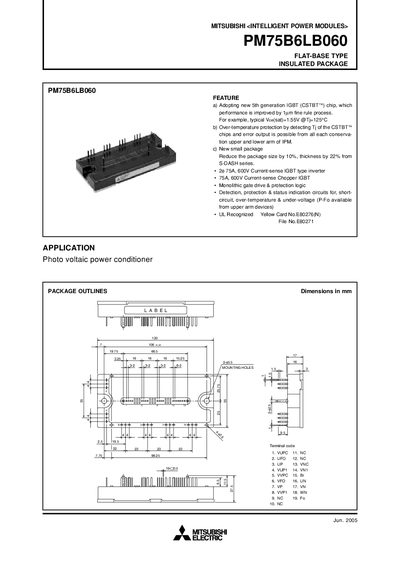

The document lists detailed electrical and mechanical ratings, including collector‑emitter voltage, current limits, thermal resistance, and recommended mounting torque. It also provides performance curves, testing precautions, and example application circuits to aid designers in integrating the module safely and efficiently.
| Continuous Collector Current (Ic) | 75 A |
|---|---|
| Peak Collector Current (Icp) | 150 A |
| Power Dissipation (Pc) | 390 W |
| Junction Temperature Range | -20 °C to +150 °C |
| Supply Voltage (VD) | 13.5 V – 16.5 V |
| Weight | 340 g |
The module can handle a continuous collector current of 75 A.
The isolation voltage rating is 2500 V for 60 Hz sinusoidal voltage applied for 1 minute.
The recommended supply voltage is between 13.5 V and 16.5 V.
