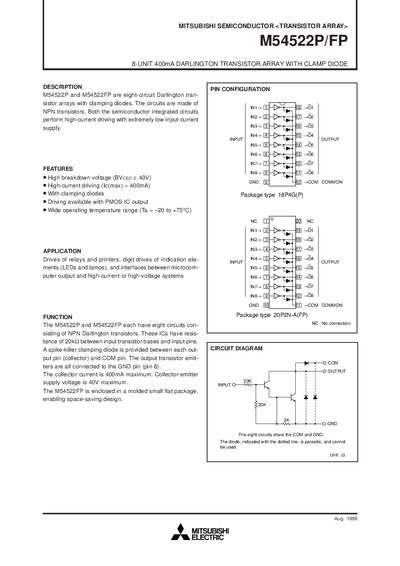

M54522P/FP is an 8-channel Darlington transistor array with clamping diodes. The circuits are made of NPN transistors. Both the semiconductor integrated circuits perform high-current driving with extremely low input-current supply.
The M54522P/FP transistor array integrates eight NPN Darlington circuits with built‑in clamping diodes. Each circuit can drive up to 400 mA with a collector‑emitter voltage rating of 40 V, making it suitable for driving relays, printers, LEDs and other high‑current loads.
Two package options are offered: a flat molded package (20P2N‑A(FP)) for space‑saving designs and a standard 18‑pin package. The device operates from –20 °C to +75 °C and includes protection features such as a 20 kΩ base resistance and a spike‑killer diode on each output.
| Input voltage range (VI) | –0.5 V to +40 V |
|---|---|
| Clamping diode forward current (IF) | 400 mA |
| Clamping diode reverse voltage (VA) | 40 V |
| Operating temperature range | –20 °C to +75 °C |
| Storage temperature range | 55 °C to +125 °C |
The transistor array operates from –20 °C up to +75 °C.
