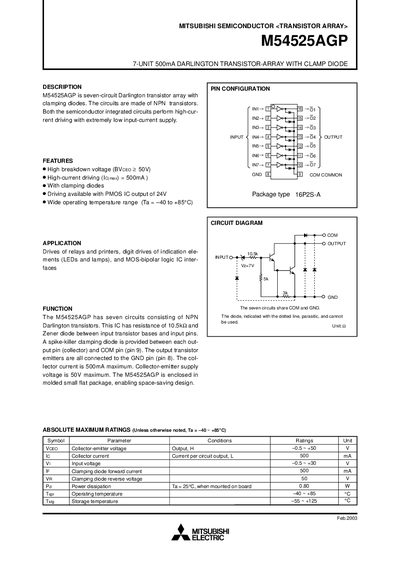

M54525AGP is a seven-circuit Darlington transistor array with clamping diodes. It performs high-current driving with extremely low input-current supply.
The M54525AGP is a seven‑circuit Darlington transistor array with integrated clamping diodes, designed for high‑current driving and low input‑current supply. It is packaged in a 16‑pin flat package suitable for space‑saving designs.
Key features include a 50 V collector‑emitter breakdown voltage, 500 mA maximum collector current per circuit, wide operating temperature range, and built‑in clamping diodes for protection. Electrical and switching characteristics are provided for typical application circuits such as relay and LED drivers.
| Breakdown voltage (VCEO) | 50 V |
|---|---|
| Input voltage range (Vi) | -0.5 V to +30 V |
| Clamping diode forward current (IF) | 500 mA |
| Operating temperature (Topr) | -40 °C to +85 °C |
| Storage temperature (Tstg) | -55 °C to +125 °C |
The device has a breakdown voltage of 50 V.
It operates from –40 °C up to +85 °C.
The allowed input voltage is from –0.5 V to +30 V.
