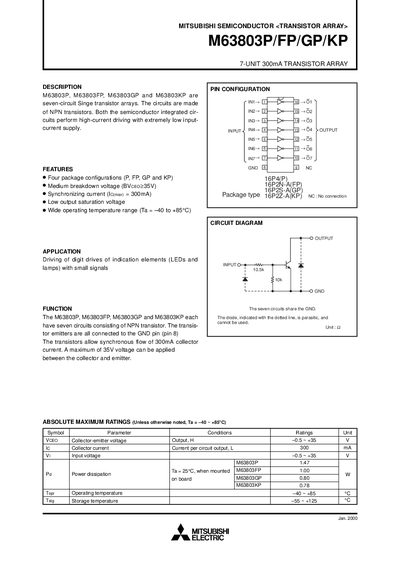

M63803P, M63803FP, M63803GP, and M63803KP are seven-circuit single transistor arrays. The circuits are made of NPN transistors. Both semiconductor integrated circuits perform high-current driving with extremely low input-current supply.
The M63803 series is a 7‑circuit NPN transistor array offering up to 300 mA per circuit and a collector‑emitter voltage rating of 35 V. Four package options (P, FP, GP, KP) provide flexibility for various board layouts.
The document lists absolute maximum ratings, recommended operating conditions, electrical and switching characteristics, as well as typical performance curves across temperature ranges from –40 °C to +85 °C.
| Collector‑emitter voltage (VCEO) | 35 V |
|---|---|
| Synchronizing current (I Cmax) | 300 mA |
| Operating temperature range | –40 °C to +85 °C |
| Package configurations | P, FP, GP, KP |
The device can tolerate up to 35 V between collector and emitter.
Each circuit can handle a synchronizing current of 300 mA.
It operates from –40 °C up to +85 °C.
