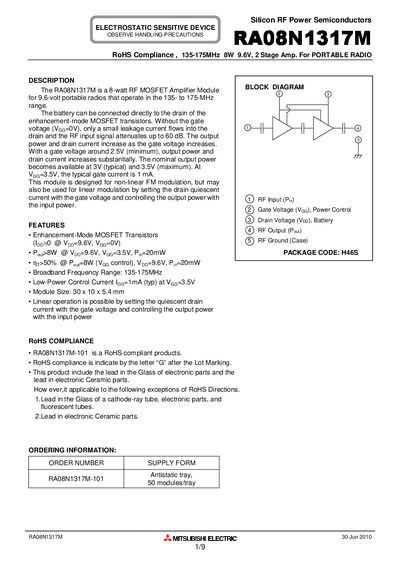

The RA08N1317M is an 8-watt RF MOSFET Amplifier Module for 9.6-volt portable radios that operate in the 135- to 175-MHz range.
The RA08N1317M is an 8‑watt RF MOSFET amplifier module designed for 9.6 V portable radios operating between 135 MHz and 175 MHz. It uses enhancement‑mode MOSFET transistors and can be driven by gate voltages from about 2.5 V to 3.5 V to achieve nominal output power.
The module is built on an alumina substrate with a copper flange, protected by a plastic cap. Proper ESD handling, heat‑sink mounting, and soldering procedures are required for reliable operation. RoHS compliance is indicated by a “G” lot marking.
| Frequency Range | 135‑175 MHz |
|---|---|
| Input Power (Pin) | 20 mW |
| Gate Voltage (typical) | 3 V – 3.5 V |
| Package Size | 30 × 10 × 5.4 mm |
| Low‑Power Control Current | 1 mA (typ) at Veg=3.5 V |
M2.6 screws should be tightened to a torque of 1.8 – 3.0 kgf‑cm.
The module case temperature should be kept below 90 °C for long‑term reliability.
RoHS compliance is indicated by the letter “G” after the lot marking.
