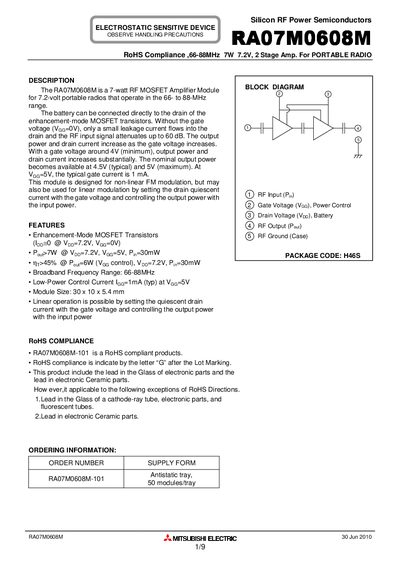

The RA07M0608M is a 7-watt RF MOSFET Amplifier Module for 7.2-volt portable radios that operate in the 66- to 88-MHz range. It features enhancement-mode MOSFET transistors, low-power control current, and a broadband frequency range.
The RAO7MO608M is a 7‑watt RF MOSFET amplifier module designed for 7.2 V portable radios operating in the 66‑88 MHz band. It uses enhancement‑mode MOSFET transistors and can be driven directly from a battery, with output power controlled by gate voltage or input power.
The document provides maximum ratings, electrical characteristics, typical performance curves, mechanical construction details, recommended mounting and thermal design, as well as safety and RoHS compliance information for reliable integration into RF equipment.
| Frequency Range | 66 – 88 MHz |
|---|---|
| Output Power (typical) | 7 W |
| Drain Voltage (Vop) | 7.2 V |
| Gate Voltage (Vag) range | 0 – 5 V |
| Input Power (Pin) | 30 mW (typ) |
| Total Efficiency | 45 % |
| Package Size | 30 × 10 × 5.4 mm |
| Control Current (gate) | 1 mA (typ) |
| Heat‑sink flatness requirement | < 50 µm |
| Mounting screw torque | 1.8 – 3.0 kgf·cm |
The mounting screws should be tightened to a torque of 1.8 to 3.0 kgf·cm.
The module is sensitive to ESD voltages down to 1000 V and requires appropriate precautions.
The heat‑sink surface must be flatter than 50 µm to avoid cracking the ceramic substrate.
For long‑term reliability the module case temperature should be kept below 90 °C (60 °C under standard conditions).
