This product is a 6.7-watt RF MOSFET Amplifier Module for 7.2-volt portable radios that operate in the 135- to 175-MHz range.

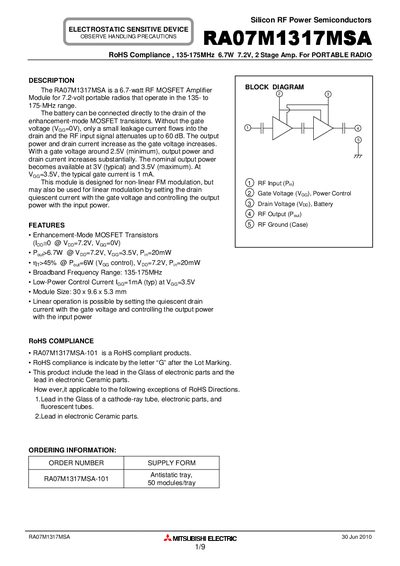

This datasheet describes the RAQ7M1317MSA 6.7‑watt RF MOSFET amplifier module designed for 7.2 V portable radios in the 135‑175 MHz band. It includes the module’s electrical characteristics, maximum ratings, typical performance curves, and mechanical dimensions.
The document also gives detailed handling and safety recommendations, such as ESD protection, heat‑sink mounting guidelines, soldering limits, and RoHS compliance information. It is intended for designers and technicians integrating the module into RF equipment.
| Frequency Range | 135 – 175 MHz |
|---|---|
| Output Power (typical) | 6.7 W |
| Total Efficiency (typical) | 45 % |
| Gate Current (typical) | 1 mA |
| Drain Voltage Rating | 9.2 V |
| Gate Voltage Rating | 7.2 V |
| Input Power (Pin) | 30 mW |
| Module Size | 30 × 9.6 × 5.3 mm |
| Recommended Screw Torque | 1.8 – 3.0 kgf·cm |
Nominal output power becomes available when the gate voltage is around 3.0 V (typical) to 3.5 V (maximum).
The MOSFET module is sensitive to ESD voltages down to 1000 V, so appropriate ESD precautions are required.
RoHS compliance is indicated by the letter “G” after the lot marking.
