RA07H0608M is a 7W 12.5V RF MOSFET Amplifier Module from RASilicon, operating in the 68-88MHz range. It is suitable for portable radios.
The RA07H0608M is a 7‑watt RF MOSFET amplifier module designed for 12.5 V portable radios operating in the 68‑88 MHz band. It features enhancement‑mode MOSFET transistors, low‑power control current, and can be used for both non‑linear FM and linear AM modulation.

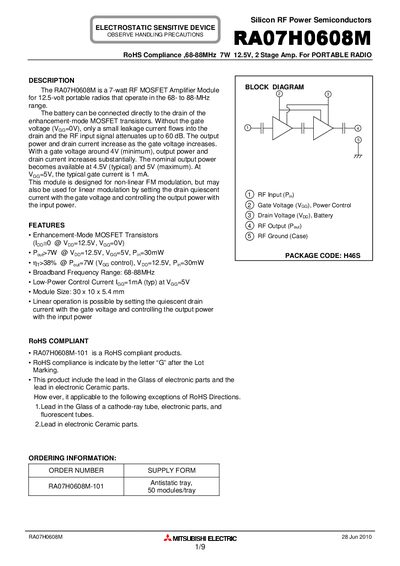

The document provides maximum ratings, electrical characteristics, typical performance curves, mechanical drawing, equivalent circuit, and detailed recommendations for handling, mounting, soldering, and thermal design. Safety and ESD precautions are also included.
| Frequency Range | 68‑88 MHz |
|---|---|
| Output Power | 7 W |
| Drain Voltage (Vop) | 12.5 V |
| Gate Voltage (Vaa) | up to 5 V |
| Module Size | 30 mm × 10 mm × 5.4 mm |
| Low‑Power Control Current | ≈1 mA at Vg=5 V |
| Total Efficiency | 38 % |
| ESD Sensitivity | down to 1000 V |
| Recommended Screw Torque | 1.8‑3.0 kgf·cm |
Around 4.5 V (typical) to 5 V (maximum) the nominal 7 W output power becomes available.
The module is sensitive to ESD voltages down to 1000 V and requires appropriate precautions.
The maximum drain voltage rating is 12.5 V.
