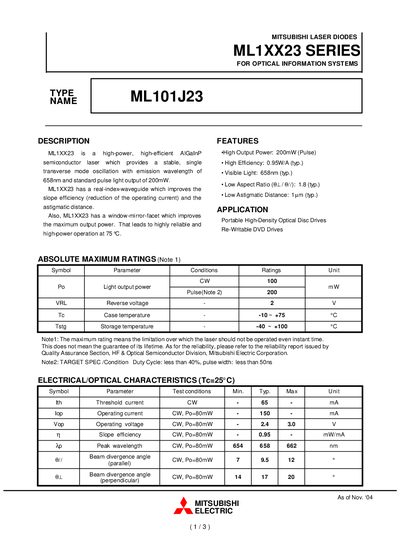

ML1XX23 series is a high-power, high-efficient AlGaInP semiconductor laser from Mitsubishi Electric Corporation that provides a stable, single transverse mode oscillation with an emission wavelength of 658nm and a standard pulse light output of 200mW. ML1XX23 has a real-index-waveguide which improves the slope efficiency (reduction of the operating current) and the astigmatic distance. Also, ML1XX23 has a window-mirror-facet which improves the maximum output power. That leads to highly reliable and high-power operation at 75 °C.
The ML101J23 is a high‑efficiency AlGaInP semiconductor laser diode designed for optical information systems such as portable high‑density optical disc drives and rewritable DVD drives. It provides a stable single‑transverse‑mode operation with a typical wavelength of 658 nm and a pulse output of 200 mW.
Key specifications include a threshold current of 65 mA, operating voltage of 3.0 V at 80 mW CW, slope efficiency of 0.95 mW/mA, and low astigmatic distance. The device is rated for operation up to 75 °C case temperature and includes safety and reliability notes from Mitsubishi Electric.
| Pulse Output Power | 200 mW |
|---|---|
| Typical Wavelength | 658 nm |
| Threshold Current (Ith) | 65 mA |
| Operating Voltage (Vop) at 80 mW CW | 3.0 V |
| Slope Efficiency | 0.95 mW/mA |
| Beam Divergence (parallel) | 7° |
| Beam Divergence (perpendicular) | 14° |
| Maximum Case Temperature | +75 °C |
The typical emission wavelength is 658 nm.
The maximum pulse output power is 200 mW.
The threshold current (Ith) is 65 mA.
The operating voltage is 3.0 V.
