The ML1XX21 series is a high-power, high-efficiency AlGaInP semiconductor laser that provides stable single transverse mode oscillation with an emission wavelength of 658nm and a standard pulse light output of 160mW. The ML1XX21 features a real-index waveguide that improves slope efficiency (reducing operating current) and astigmatic distance. Additionally, the ML1XX21 has a window-mirror-facet that improves maximum output power, resulting in highly reliable and high-power operation.
The ML1XX21 series is a high‑efficiency AlGaInP semiconductor laser offering stable single‑transverse‑mode operation at a typical wavelength of 658 nm and a pulse output power of 160 mW. It is intended for portable high‑density optical disc drives and rewritable DVD drives.

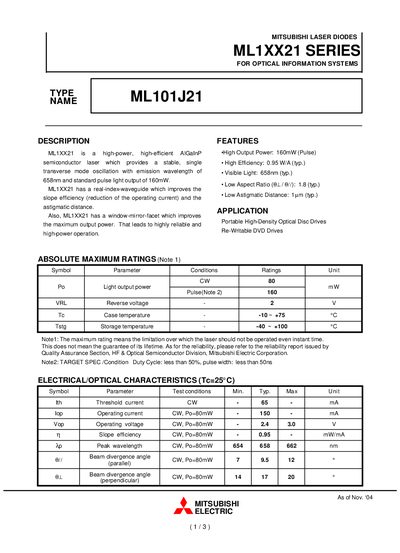

The datasheet lists electrical and optical characteristics such as a threshold current of 65 mA, slope efficiency of 0.95 W/A, and operating voltage of 3.0 V. It also includes absolute maximum ratings, outline drawings, and safety‑design recommendations for reliable use.
| Pulse Output Power | 160 mW |
|---|---|
| Wavelength (typ.) | 658 nm |
| Slope Efficiency (typ.) | 0.95 W/A |
| Threshold Current (cw) | 65 mA |
| Operating Voltage (cw, 80 mW) | 3.0 V |
| Low Astigmatic Distance (typ.) | 11 mm |
| Low Aspect Ratio (typ.) | 1.8 |
| Case Temperature Range | -10 °C to +75 °C |
| Storage Temperature Range | -40 °C to +100 °C |
The typical pulse output power is 160 mW.
It emits visible light at a typical wavelength of 658 nm.
The recommended duty cycle is less than 50 % and the pulse width is less than 50 ns.
They are designed for portable high‑density optical disc drives and rewritable DVD drives.
