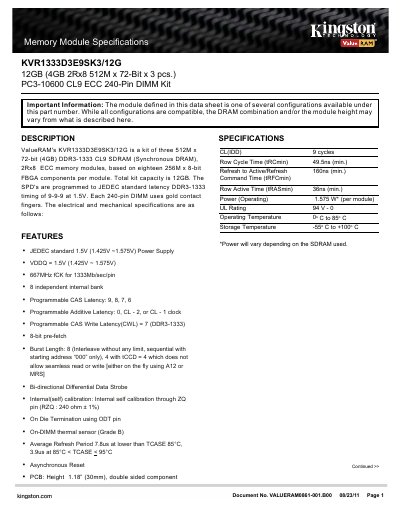

KVR1333D3E9SK3/12G is a 12GB DDR3-1333 CL9 SDRAM 2Rx8 ECC memory module from ValueRAM. The kit consists of three 512M x 72-bit (4GB) DDR3-1333 CL9 SDRAM (synchronous DRAM), 2Rx8 ECC memory modules, each based on eighteen 256M x 8-bit FBGA components. The SPDs are programmed to JEDEC standard latency DDR3-1333 timing of 9-9-9 at 1.5V. Each 240-pin DIMM uses gold contact fingers.
The ValueRAM KVR1333D3E9SK3/12G kit consists of three 4 GB 2Rx8 512M × 72‑bit DDR3‑1333 CL9 ECC DIMM modules, providing a total capacity of 12 GB. Each 240‑pin DIMM uses gold contact fingers and complies with JEDEC standard 1.5 V operation.
The document lists electrical and mechanical specifications, including voltage range, timing parameters, power consumption, temperature limits, and physical dimensions. It also notes programmable latency options and on‑DIMM thermal sensor features.
| Total kit capacity | 12 GB |
|---|---|
| DIMM type | 240‑pin DDR3‑1333 ECC |
| Operating voltage | 1.5 V (1.425 V ~ 1.575 V) |
| CAS latency | 9 (programmable 9‑8‑7‑6) |
| Power consumption (per module) | 1.575 W |
| Operating temperature | 0 °C to 85 °C |
| Storage temperature | -55 °C to +100 °C |
The kit provides a total capacity of 12 GB.
It operates at a standard 1.5 V (range 1.425 V ~ 1.575 V).
CAS latency can be programmed to 9, 8, 7, or 6.
Operating temperature is 0 °C to 85 °C; storage temperature is –55 °C to +100 °C.
