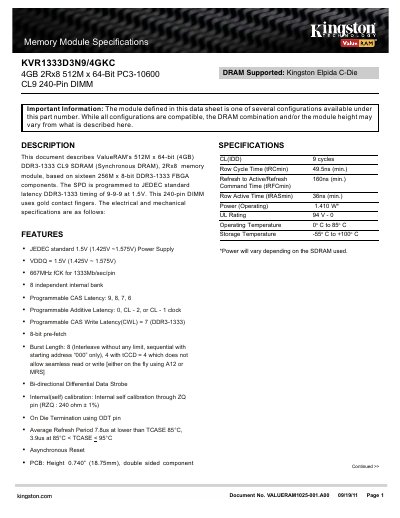

This document describes ValueRAM's 512M x 64-bit (4GB) DDR3-1333 CL9 SDRAM (Synchronous DRAM), 2Rx8 memory module, based on sixteen 256M x 8-bit DDR3-1333 FBGA components. The SPD is programmed to JEDEC standard latency DDR3-1333 timing of 9-9-9 at 1.5V.
The KVR1333D3N9/4GKC is a 4 GB (512M × 64‑bit) DDR3‑1333 CL9 SDRAM DIMM built on sixteen 256M × 8‑bit FBGA components. It is a 240‑pin, 2Rx8 module with gold‑contact fingers and a PCB height of 0.740 in (18.75 mm).
Key features include JEDEC‑standard 1.5 V operation, programmable CAS latency (9‑8‑7‑6), 8‑bit pre‑fetch, on‑die termination, internal self‑calibration via ZQ pin, and a power consumption of about 1.41 W. The module operates from 0 °C to 85 °C and is compatible with Kingston Elpida C‑Die DRAM chips.
| Capacity | 4 GB |
|---|---|
| Speed | DDR3‑1333 (1333 Mb/s) |
| Voltage | 1.5 V (1.425 V ~ 1.575 V) |
| CAS Latency | 9 (programmable 9‑8‑7‑6) |
| Form factor | 240‑pin DIMM |
| Module height | 0.740 in (18.75 mm) |
| Operating temperature | 0 °C to 85 °C |
| Power (Operating) | 1.410 W |
It operates at a JEDEC‑standard 1.5 V, with a tolerance of 1.425 V to 1.575 V.
The PCB height is 0.740 in (18.75 mm).
The module uses Kingston Elpida C‑Die DRAM chips.
The timing is 9‑9‑9 at 1.5 V.
