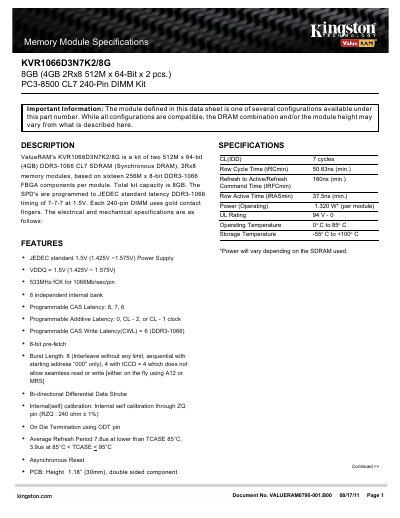

KVR1066D3N7K2/8G is a 8GB (4GB 2Rx8 512M x 64-Bit x 2 pcs.) PC3-8500 CL7 240-Pin DIMM Kit from ValueRAM. It is based on 16 256M x 8-bit DDR3-1066 FBGA components, supports DDR3-1066 CL7 SDRAM (Synchronous DRAM), 2Rx8 memory modules, and has a total capacity of 8GB. The SPDs are programmed to JEDEC standard latency DDR3-1066 timing of 7-7-7 at 1.5V. Each 240-pin DIMM uses gold contact fingers.
The ValueRAM KVR1066D3N7K2/8G kit provides 8 GB of DDR3‑1066 (PC3‑8500) memory in two 4 GB 2‑Rx8 240‑pin DIMM modules. Each module uses gold‑plated contact fingers and complies with JEDEC standard 1.5 V operation.
The kit features programmable CAS latency, on‑die termination, and internal self‑calibration. Detailed electrical and mechanical specifications, including power consumption, timing parameters, and module dimensions, are listed in the data sheet.
| Total kit capacity | 8 GB |
|---|---|
| Module type | 240‑pin DIMM |
| Operating voltage | 1.5 V (1.425 V ~ 1.575 V) |
| Programmable CAS latency | 8, 7, 6 |
| Operating power per module | 1.320 W |
| Operating temperature range | 0 °C to 85 °C |
| Module height | 1.18 in (30 mm) |
The kit provides a total capacity of 8 GB.
It operates at the JEDEC standard 1.5 V (range 1.425 V ~ 1.575 V).
The memory supports programmable CAS latency values of 8, 7, or 6.
