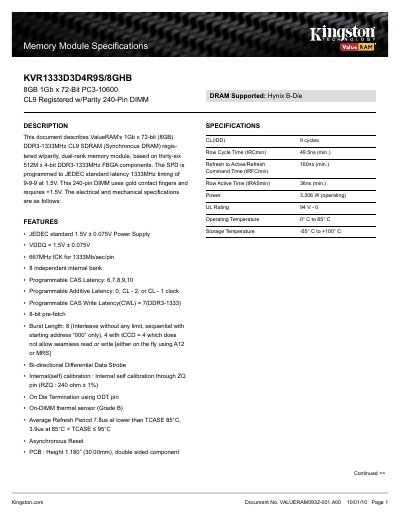

This document describes ValueRAM's 1Gb x 72-bit (8GB) DDR3-1333MHz CL9 SDRAM (Synchronous DRAM) registered w/parity, dual-rank memory module, based on thirty-six 512M x 4-bit DDR3-1333MHz FBGA components. The SPD is programmed to JEDEC standard latency 1333MHz timing of 9-9-9 at 1.5V. This 240-pin DIMM uses gold contact fingers and requires +1.5V.
This document provides the electrical, mechanical and timing specifications for Kingston's ValueRAM KVR1333D3D4R9S/8GHB 8 GB DDR3‑1333MHz registered memory module. It describes the module’s 240‑pin DIMM layout, gold contact fingers and required +1.5 V supply.
Key features include JEDEC‑standard 1.5 V ±0.075 V power, 667 MHz fCK, programmable CAS latency (6‑10), 8‑bit pre‑fetch, on‑die termination, and an on‑DIMM thermal sensor. Operating temperature ranges from 0 °C to 85 °C with a power consumption of 3.306 W. This manual is written in Chinese.
| Capacity | 8 GB (1 Gb × 72‑bit) |
|---|---|
| Operating Voltage | 1.5 V ±0.075 V |
| Memory Clock Frequency | 667 MHz fCK |
| CAS Latency (Programmable) | 6‑10 |
| Power Consumption (operating) | 3.306 W |
| Operating Temperature Range | 0 °C to 85 °C |
The module requires a 1.5 V ±0.075 V power supply.
CAS latency can be set to 6, 7, 8, 9, or 10.
It operates from 0 °C up to 85 °C.
The module consumes 3.306 W while operating.
