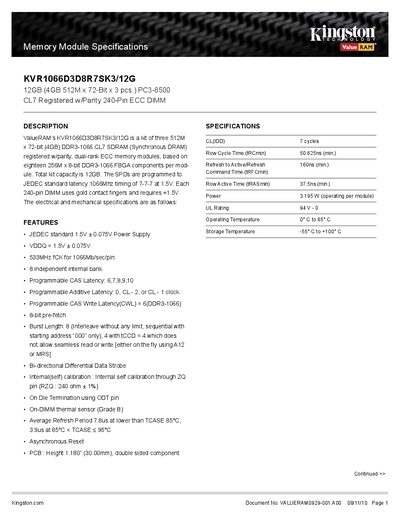

Kingston KVR1066D3D8R7SK3/12G Memory Module Specifications
The KVR1066D3D8R7SK3/12G is a kit of three 4 GB DDR3‑1066 registered ECC DIMMs (12 GB total). Each module operates at 1.5 V (+0.075 V), provides CL7 latency (programmable 6‑10), and includes features such as on‑DIMM thermal sensor, internal self‑calibration, and bi‑directional differential data strobe.
Physical specifications show a 240‑pin DIMM with a PCB height of 1.180 in (30.00 mm) and standard JEDEC dimensions. The modules meet UL rating 94V‑0, operate from 0 °C to 85 °C, and are rated for storage temperatures from –55 °C to +100 °C.
Kingston KVR12G specifications
| Total Capacity | 12 GB (3 × 4 GB) |
|---|---|
| Memory Type | Registered ECC DDR3‑1066 DIMM |
| CAS Latency | CL7 (programmable 6‑10) |
| Operating Voltage | 1.5 V (+0.075 V) |
| Power per Module | 3.195 W |
| Operating Temperature | 0 °C to 85 °C |
| Storage Temperature | –55 °C to +100 °C |
| Row Cycle Time (tRCmin) | 50.625 ns |
| Row Active Time (tRASmin) | 37.5 ns |
| Refresh to Active/Refresh | 160 ns |
| PCB Height | 30.00 mm (1.180 in) |
Source: Kingston KVR1066D3D8R7SK3/12G Memory Module Specifications
All Kingston KVR12G documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the total capacity of the Kingston KVR1066D3D8R7SK3/12G kit?
The kit provides a total capacity of 12 GB, made up of three 4 GB modules.
From: Kingston KVR1066D3D8R7SK3/12G Memory Module Specifications
At what voltage does the KVR1066D3D8R7SK3/12G operate?
Each module operates at 1.5 V with an additional 0.075 V tolerance.
From: Kingston KVR1066D3D8R7SK3/12G Memory Module Specifications
What is the total capacity of the KVR1333D3D8R9SK3/12G kit?
The kit provides a total of 12 GB, made up of three 4 GB modules.
From: ValueRAM KVR1333D3D8R9SK3/12G 12GB DDR3-1333 Registered ECC Memory Module Kit Datasheet
What operating voltage does the memory module require?
It operates at a JEDEC‑standard 1.5 V, with a tolerance of 1.425 V to 1.575 V.
From: ValueRAM KVR1333D3D8R9SK3/12G 12GB DDR3-1333 Registered ECC Memory Module Kit Datasheet
What is the total memory capacity of the KVR1066D3E7SK3/12G kit?
The kit provides a total capacity of 12 GB, made up of three 4 GB modules.
What voltage does the memory module operate at?
It operates at a JEDEC‑standard 1.5 V, with a tolerance of 1.425 V to 1.575 V.
