KHX1333C9D3B1RK2/8G 8GB (4GB 512M x 64-Bit x 2 pcs.) DDR3-1333 CL9 240-Pin DIMM Kit is a Kingston DDR3-1333 memory module with a capacity of 8GB. It is composed of two 4GB memory modules and works at a voltage of 1.5V. The timing is 9-9-9-9.

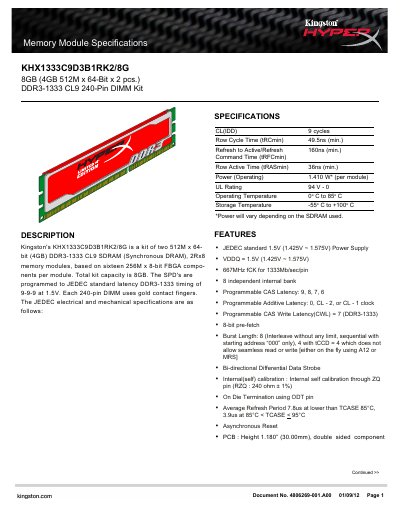

This document provides the technical specifications for the Kingston KHX1333C9D3B1RK2/8G memory kit, which consists of two 4 GB DDR3‑1333 CL9 DIMM modules for a total capacity of 8 GB. It lists electrical, timing and mechanical parameters required for system designers and integrators.
Key features include JEDEC‑standard 1.5 V operation, programmable latency settings, on‑die calibration, and a 1.180‑inch (30 mm) PCB height. The specifications also cover power consumption, temperature ranges and module dimensions.
| Total kit capacity | 8 GB |
|---|---|
| Module type | 240‑Pin DIMM |
| Operating voltage | 1.5 V (1.425 V ~ 1.575 V) |
| CAS latency | 9 cycles |
| Row Cycle Time (tRCmin) | 49.5 ns |
| Refresh to Active/Refresh | 160 ns |
| Row Active Time (tRASmin) | 36 ns |
| Operating power | 1.410 W per module |
| Operating temperature | 0 °C to 85 °C |
| Storage temperature | -55 °C to +100 °C |
| Module height | 1.180 in (30 mm) |
The kit provides a total capacity of 8 GB, made up of two 4 GB modules.
It operates at a JEDEC standard 1.5 V supply (range 1.425 V to 1.575 V).
The module uses CL9 latency, a row cycle time of 49.5 ns, refresh to active 160 ns, and row active time of 36 ns.
It operates from 0 °C to 85 °C and can be stored from –55 °C to +100 °C.
